NanoStation AC loco 5 GHz airMAX ac CPE
The NanoStation AC loco is compact, UISP-ready WiFi radio sporting a classic NanoStation design and an updated airMAX AC chipset. integrates airMAX Wireless Access Point (MIMO TDMA protocol) technology and dedicated Wi-Fi management to create a more efficient and compact CPE. The low cost, high performance, and small form factor of the NanoStation AC loco makes it extremely versatile and economical to deploy.
Technical Chart
Mechanical

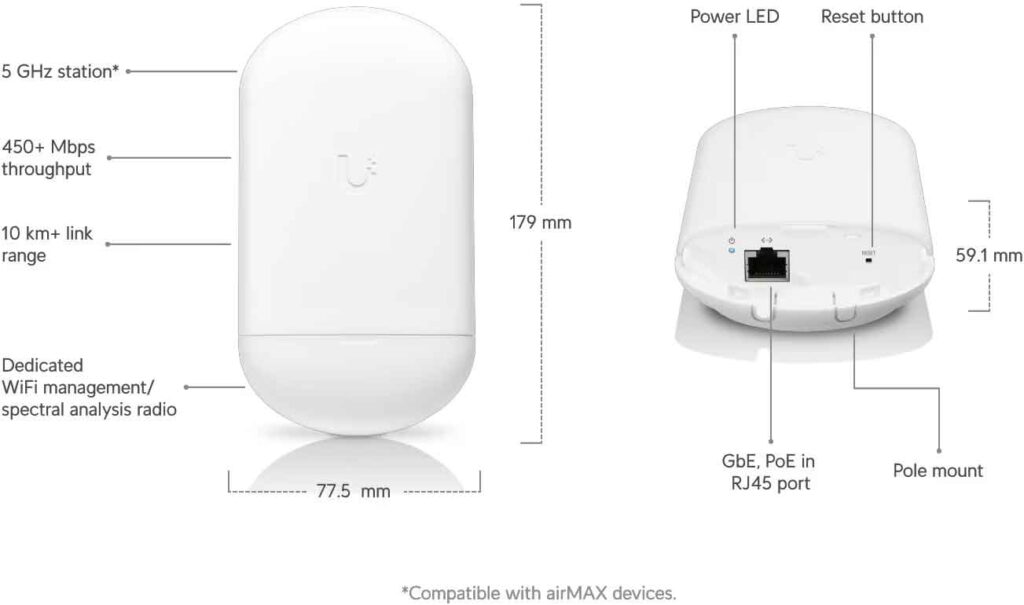

Dimensions 179 x 77.5 x 59.1 mm (7.1 x 3.1 x 2.3″)
Weight 180 g (6.4 oz)
Enclosure material UV-stabilized plastic
Mounting Pole mounting kit (Included)
Hardware

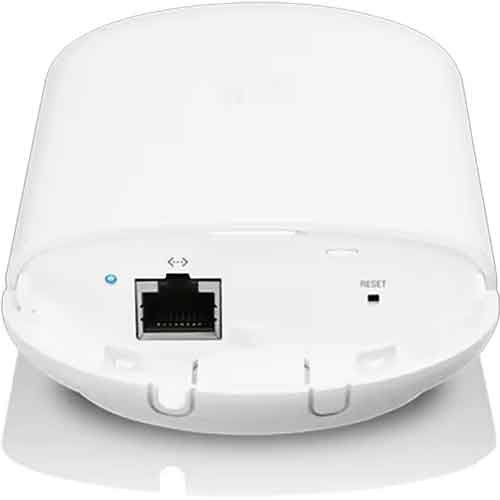

Networking interface (1) GbE RJ45 port
Power method Passive PoE 2-pair (4, 5+; 7, 8 return)
Power supply 24V, 0.3A gigabit PoE supply (Not included)
Supported voltage range 22–27V DC
Max. power consumption 7W
LEDs Power, Ethernet, (4) signal strength
Ambient operating temperature -40 to 70° C (-40 to 158° F)
Ambient operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
NDAA Compliant Yes
System
Gain 13 dBi
Channel bandwidths 10/20/30/40/50/60/80 MHz
Cross-pol isolation 20 dB min.
Max. VSWR 1.8:1
Beamwidth 45° (H-pol) / 45° (V-pol) / 45° (Elevation)
Polarization Dual linear
Operating Frequency (MHz)
Worldwide 5150-5875 MHz
USA
U-NII-1
U-NII-2A
U-NII-2C
U-NII-3
5150-5250 MHz
5250-5350 MHz
5240-5725 MHz
5725-5850 MHz
Management Radio (MHz)
Worldwide 2412 – 2472 MHz
US/CA 2412 – 2462 MHz
Brand: Ubiquiti
